How do I set up a stick-up configuration?

Contractors Vapor Pin® Kits

Contractors VAPOR PIN® Kits

USA Service

While wearing PPE, drill a 5/8-inch diameter hole through the slab and approximately 1-inch into the underlying soil to form a void

Drill Guide

Stainless Steel Drilling Guide

USA Service

Keep up on dust management with a Wet/Dry Vacuum. HEPA filter optional

Drill Guide

Stainless Steel Drilling Guide

USA Service

Brush the hole with the bottle brush and remove the loose cuttings with the vacuum

Bottle Brush

Bottle Brush

USA Service

Assemble the Vapor Pin® Sampling Device and place the lower end of the Vapor Pin® into the drilled hole

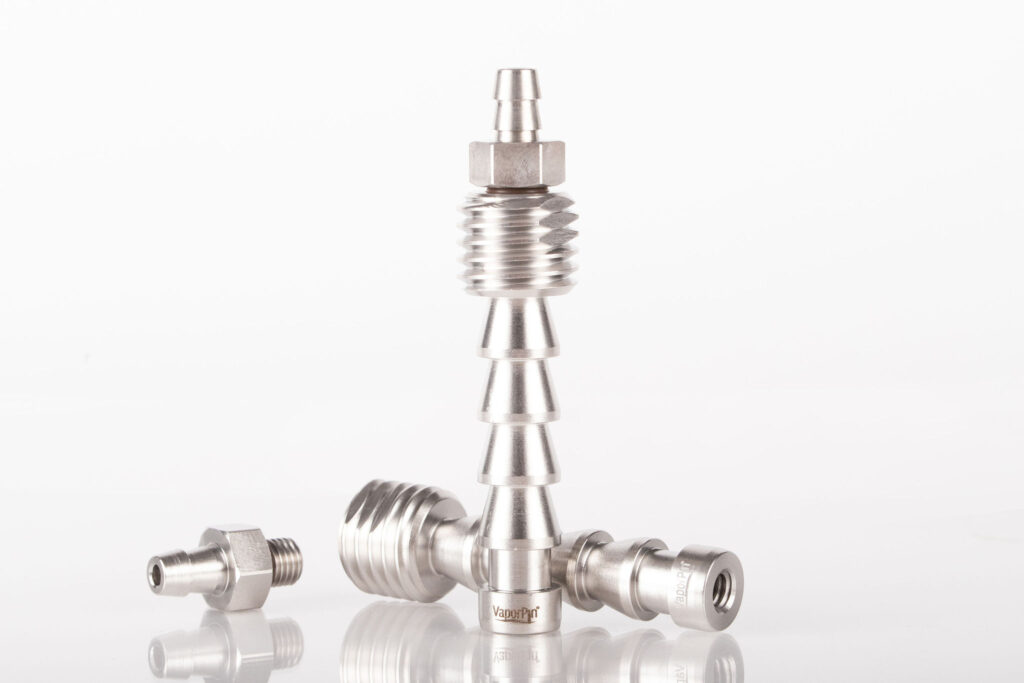

Vapor Pin® Sampling Device

Stainless Steel VAPOR PIN® Sampling Device VPIN0522SS

USA Service

Place the small hole located in the handle of the Installation/Extraction Tool, over the Vapor Pin® to protect the barb fitting and tap the Vapor Pin® into place

Installation/Extraction Tool

Installation/Extraction Tool

USA Service

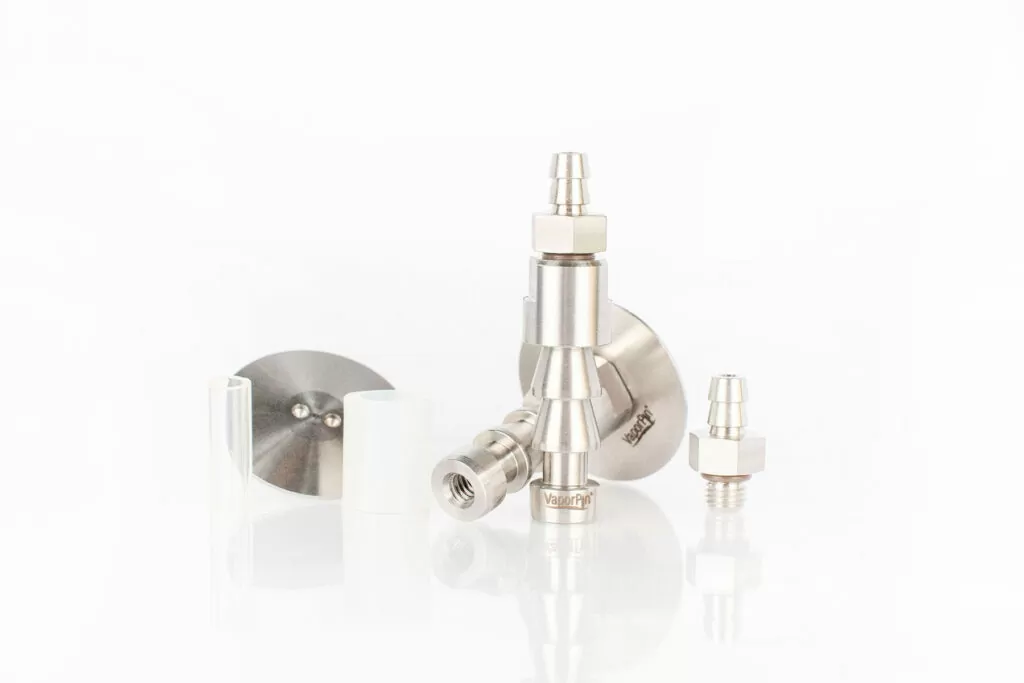

Place the Vapor Pin® Cap on the Vapor Pin® to prevent vapor loss prior to sampling

Vapor Pin® Cap

VAPOR PIN® Caps – 20 Pieces

USA Service

Allow 20 minutess or more (consult applicable guidance for your situation) for the sub-slab soil-gas conditions to re-equilibrate prior to sampling

Vapor Pin® Kit

VAPOR PIN® Kit

USA Service

How do I install the Vapor Pin® in a flush mount configuration?

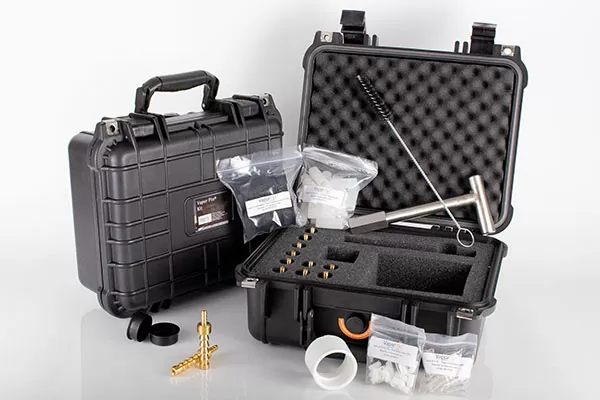

Contractor Vapor Pin® Kit

Contractors VAPOR PIN® Kits

USA Service

While wearing PPE, drill a 1 and 1/2 inch diameter hole into the concrete slab to a depth of approximately 1 and 3/4 inch

Stainless Steel Drilling Guide

Stainless Steel Drilling Guide

USA Service

Keep up on dust management with a Wet/Dry Vacuum. HEPA filter optional

Stainless Steel Drilling Guide

Stainless Steel Drilling Guide

USA Service

Use the Drilling Guide to verify the depth of the hole until you are able to make the Drilling Guide flush with the concrete

Stainless Steel Drilling Guide

Stainless Steel Drilling Guide

USA Service

Once you have the Drilling Guide flush with the concrete, switch your drill bit to the 5/8 inch bit to create the hole for your Vapor Pin®

Stainless Steel Drilling Guide

Stainless Steel Secured Cover

USA Service

The Drilling Guide will help to center the hole for the Vapor Pin® Sampling Device and keep the hole perpendicular to the slab

Stainless Steel Drilling Guide

Stainless Steel Drilling Guide

USA Service

After drilling your hole to the proper depth, clean the hole and vacuum the remaining dust

Bottle Brush

Bottle Brush

USA Service

Assemble the Vapor Pin® Sampling Device and place the lower end of the Vapor Pin® into the drilled hole

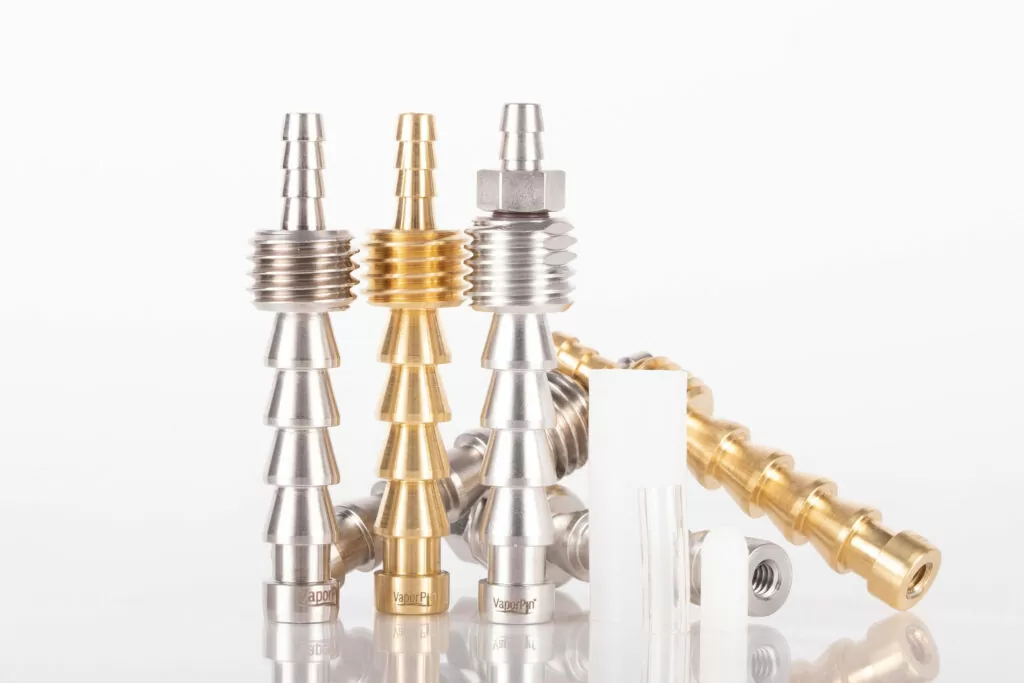

Vapor Pin® Sampling Device Sets

Stainless Steel VAPOR PIN® Sampling Device VPIN0522SS

USA Service

Place the small hole located in the handle of the Installation/Extraction Tool, over the Vapor Pin® to protect the barb fitting and tap the Vapor Pin® into place

Installation/Extraction Tool

Installation/Extraction Tool

USA Service

Screw the Cover initially by hand

Stainless Steel Secure Cover

Stainless Steel Secured Cover

USA Service

Once the cover is too low screw the Stainless Steel Secure Cover the rest of the way by using thee Spanner Tool

Spanner Tool

Spanner for Secured Cover

USA Service

Allow 20 minutes or more (consult applicable guidance for your situation) for the sub-slab soil-gas conditions to re-equilibrate prior to sampling

Contractor Vapor Pin® Kit

Contractor Kit

What can Vapor Pins do?

Vapor Intrusion Studies

Vapor Pin® sampling devices are used world-wide for the collection of sub-slab data used in support of comprehensive and defendable vapor intrusion evaluations. Vapor Pin® sampling devices provide secure, leak-proof conduits to the sub-slab environment required for the collection of high-quality sub-slab soil-gas samples and differential pressure readings. Vapor Pin® devices are easily and securely connected to a wide variety of sampling media (canisters, evaluated vials, and sorbents) and detection instruments (PIDs, multi-gas analyzers, manometers, and pressure transducers). In addition, Vapor Pin® devices can facilitate active and passive sub-slab soil-gas sampling techniques.
